The Ultimate Kit

The Ultimate Kit

$18,999.00 USD
$18,999.00 USD
Sale Sold out
Shipping calculated at checkout.

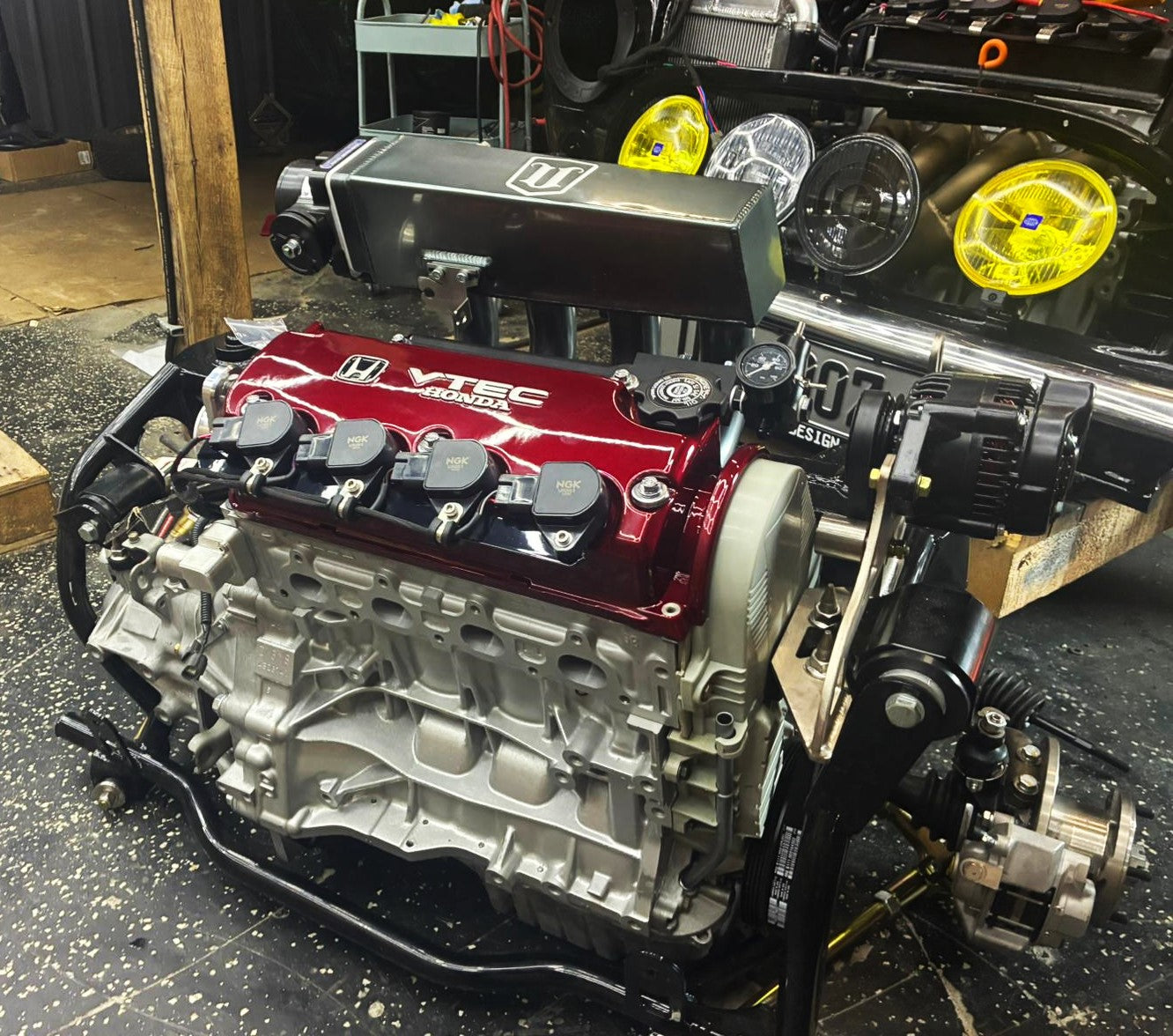

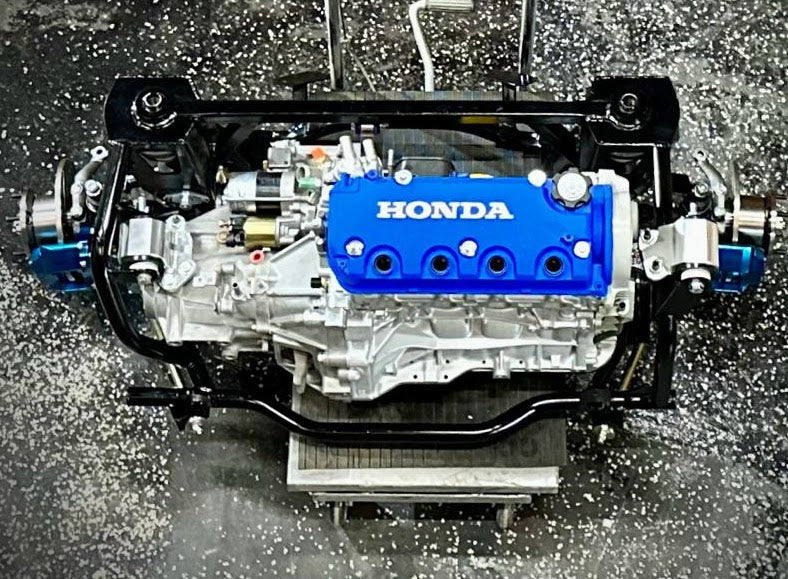

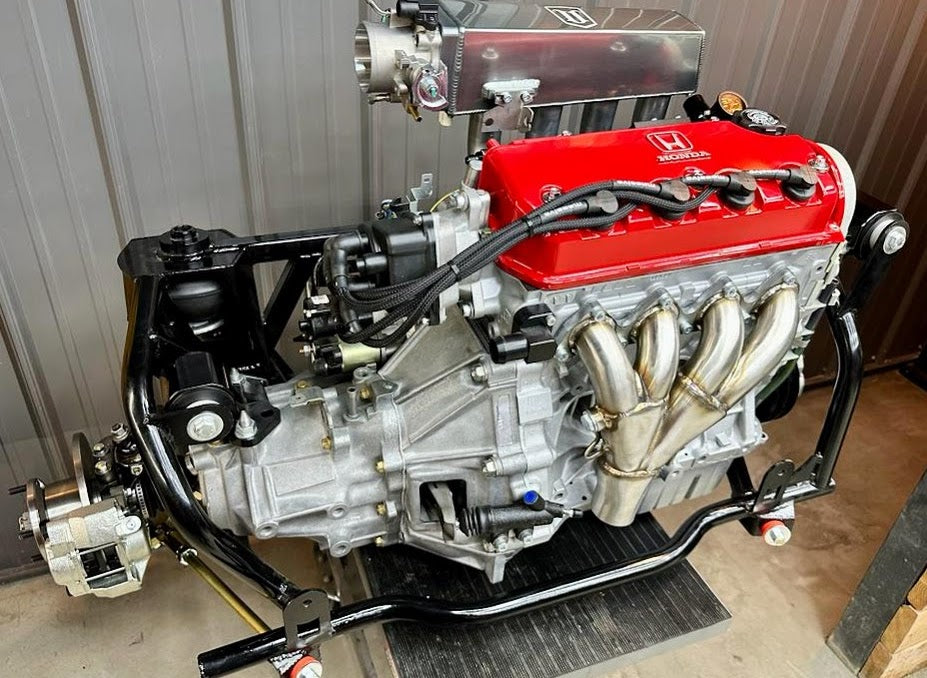

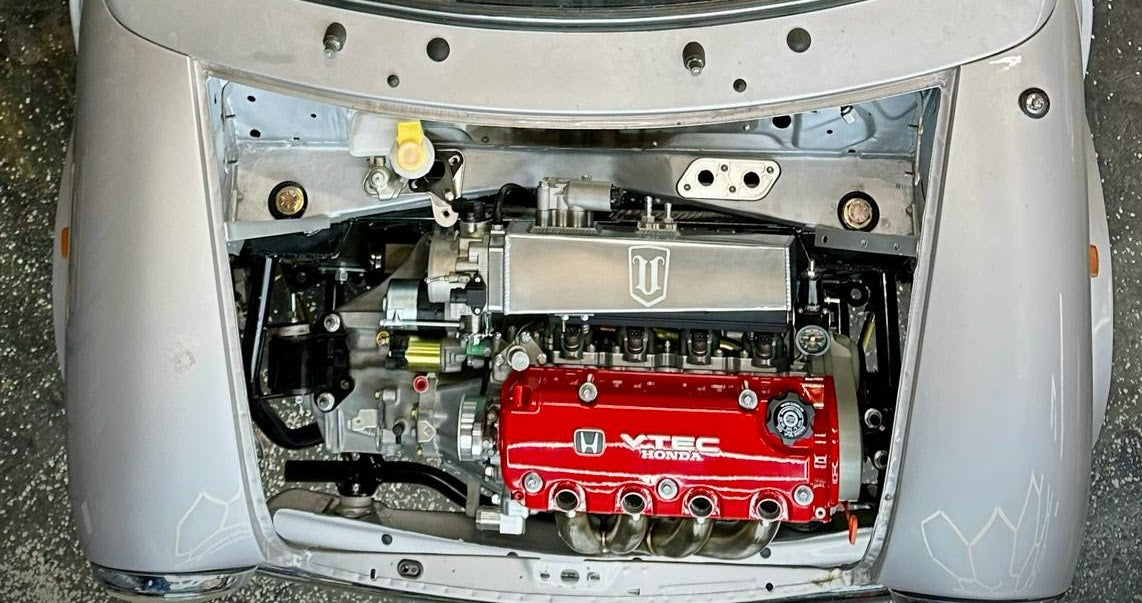

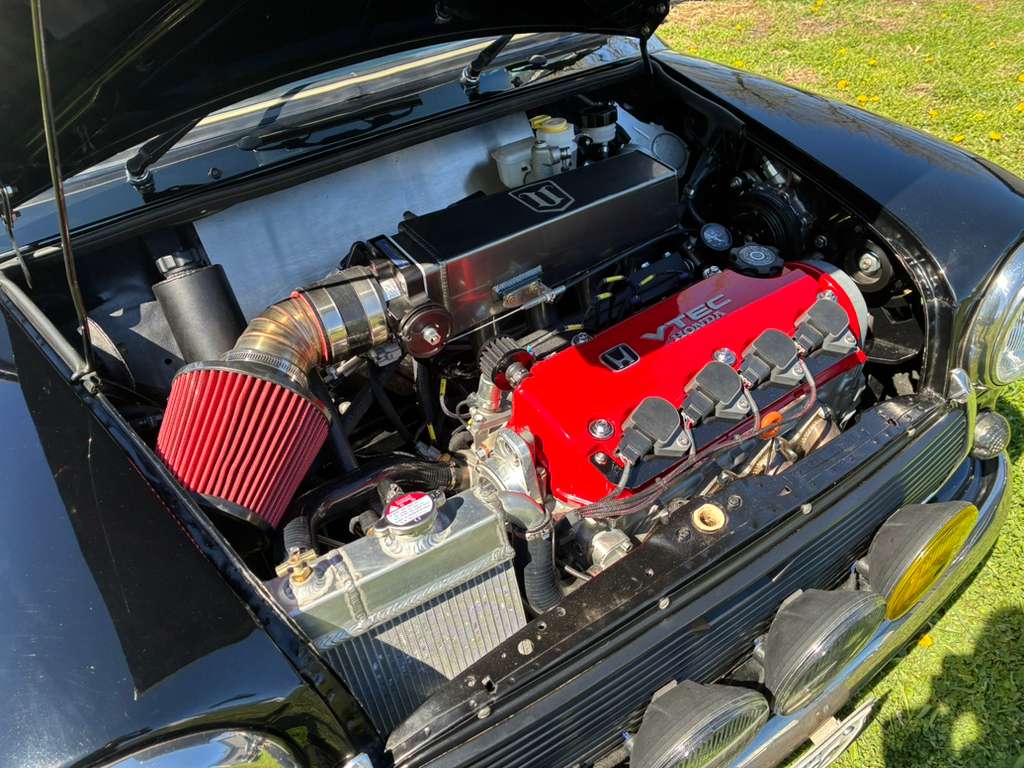

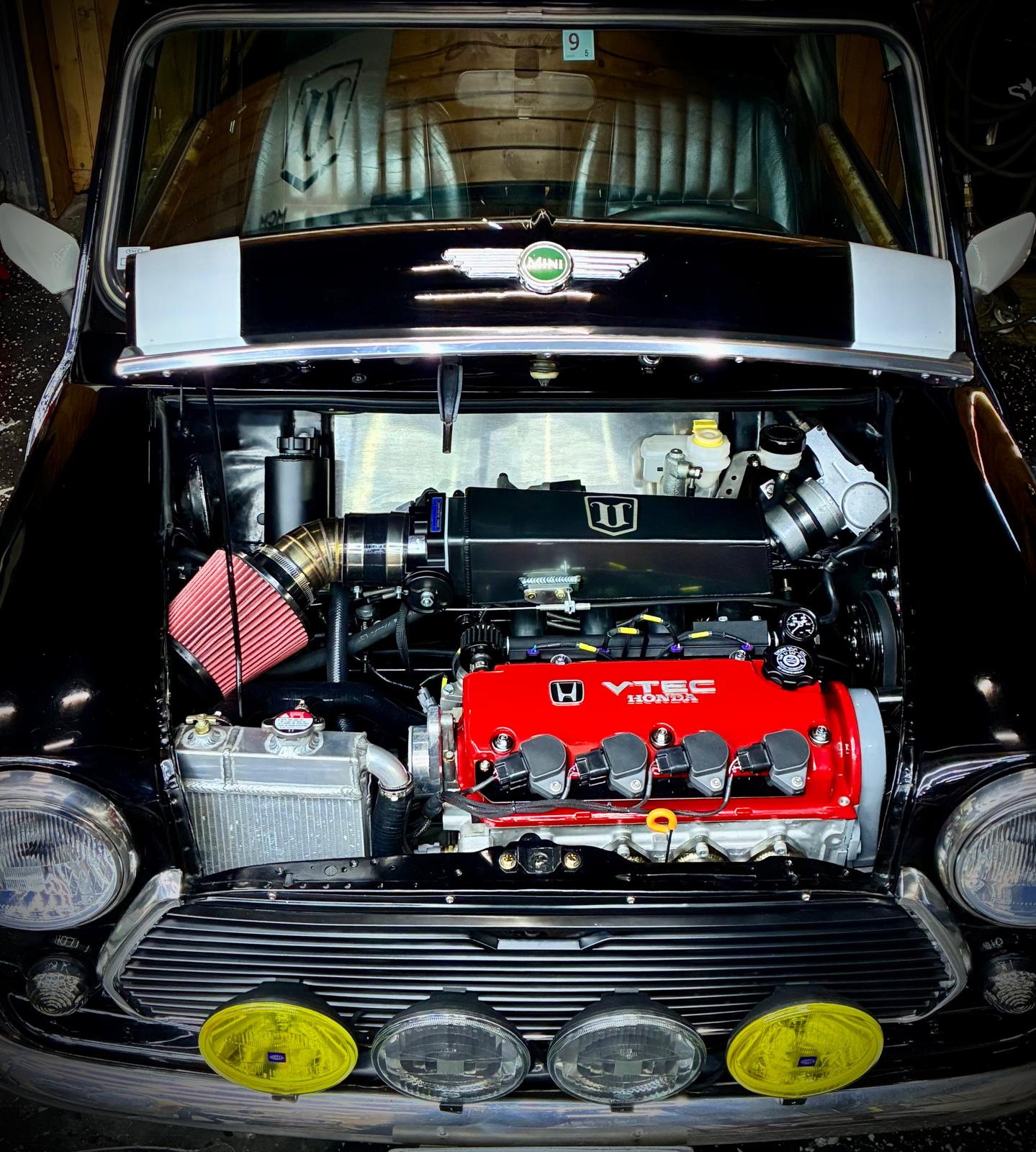

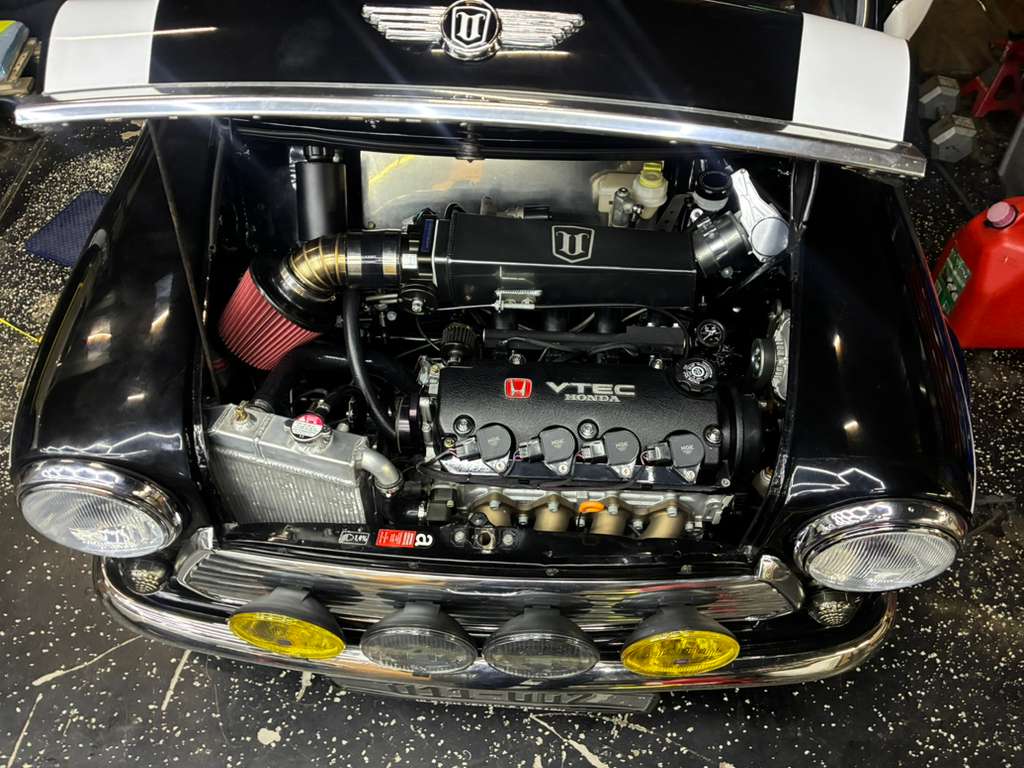

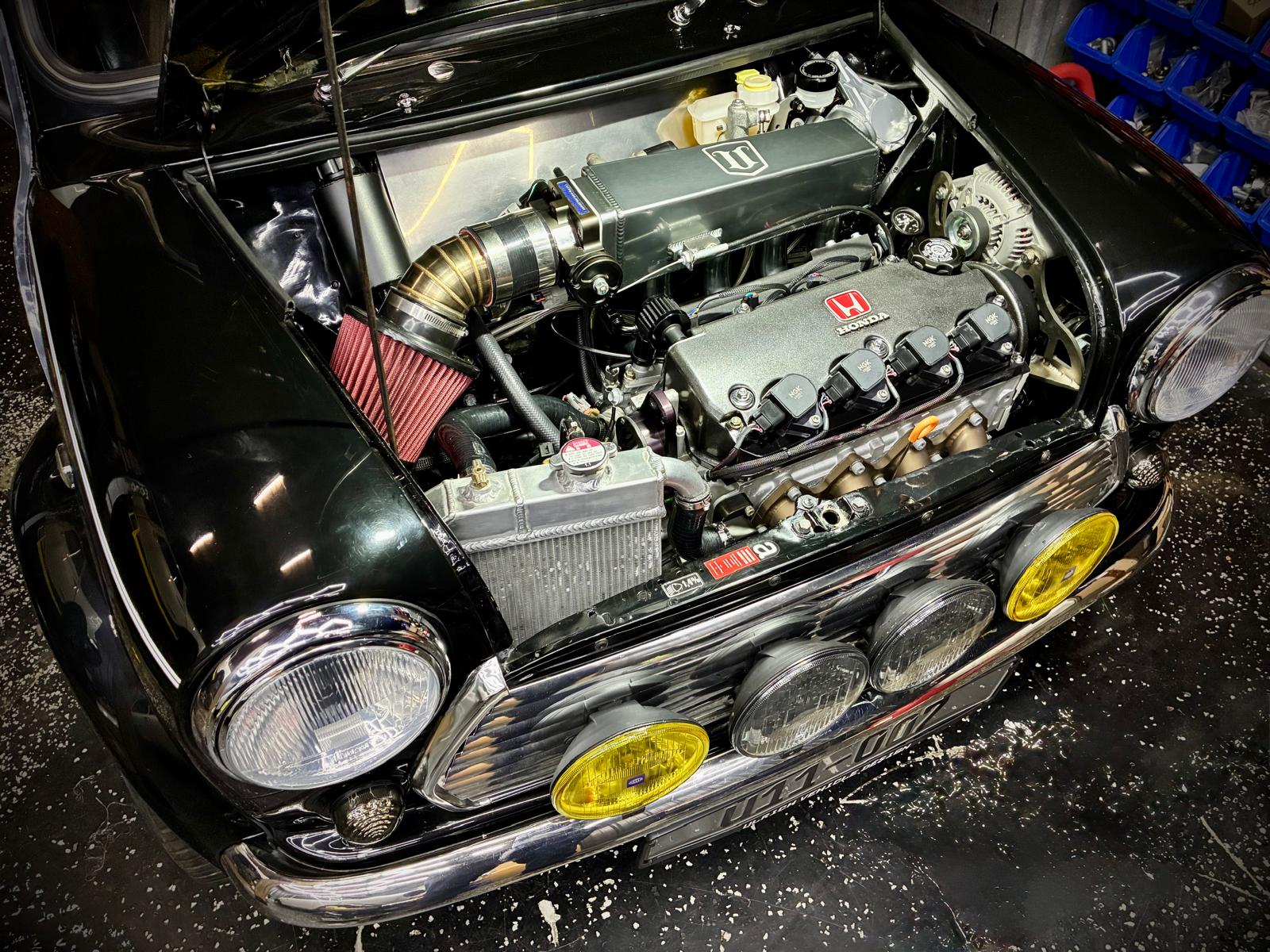

This is our Ultimate Kit comprising of our MCM Subframe, Anodized Gunmetal Intake Manifold, Stainless Header, Hybrid Axles, Fully Rebuilt Honda D16y8 Vtec Long Block, Synchrotech 5 Speed transmission with 3.7 final drive and Mfactory LSD. Assembled beautifully by Ulrich Vehicle Design. Even has fresh brakes! Shoot me a message to order yours! Fits RHD or LHD Classic Mini with standard steel round nose front and stock mini suspension components. Aprrox 150bhp, cruises at 70mph at 3000 rpms! More specs below:


Includes:

  • Fully Rebuilt Honda D16y8 Sohc Vtec Engine by NRLE Engines

  • Rebuilt 5 Speed Transmission w/ 3.72 or 3.5 Final Drive, Mfactory LSD

  • New Flywheel, Clutch, Hardware

  • UVD Intake Manifold, new sensors, Skunk 2 68mm Pro Series Throttle Body, fuel rail, and new injectors

  • Custom Stainless Exhaust Manifold

  • Hondata S300 V3 P28 ECU or PNP Duino ECU with Wideband Sensor

  • UVD Subframe Gloss Black Powder Coated and built up with new cones, tie rods, top arms, adjustable lower arms

  • Custom Built Shifter

  • New Sportpack steering Rack

  • Suspension Kit (shocks front and rear), Hi-Los, and Cones

  • Hydraulic Clutch Kit

  • Alternator Bracket Kit with Honda Alternator

  • Standalone UVD OBD1 Wiring Engine Harness

  • Assembled Hybrid Axles

  • UVD Custom Dual Pass Aluminum Radiator, 10” Spal Fan, Black Silicon Hoses, 90 Waterneck

  • Front Brake Options possible at an additional cost.

  • Digidizzy Distributor with D17 Coil Packs and COP Bracket


**Customer would need to provide gauges, header back exhaust, and fuel setup which we can include in a custom quote**

*Starting at $18,999k - Please email us at UVDLLCSALES@gmail.com and we will send you a quote based on your specific needs.



**Most products are made to order and generally have a 4-6 week fulfillment turn around time unless we have just completed a production run and have that particular product in stock. If you want to check the status of a certain product and you need it urgently, please email us at UVDLLCSales@gmail.com before placing an order**
